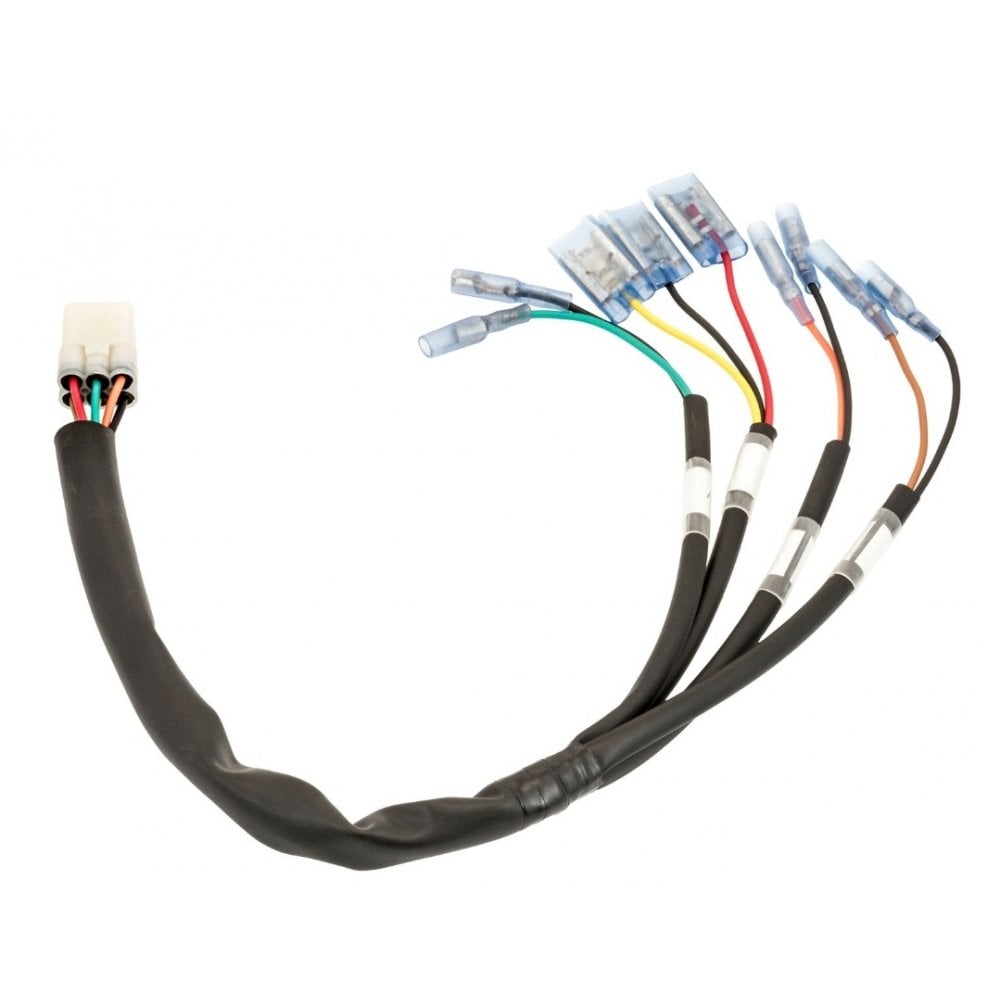

Motone Plug & Play Wiring Harness Adaptor
Multi version, for optional use with 3in1 Rear Lights and a Tail Light at the same time (also works with regular tail light as well).
Plug and play wiring loom for all the Liquid Cooled Triumph Twins meaning all the twins 2016 and up
Suitable for Euro 4 and Euro 5: Triumph Street Twin, Street Cup, T100, T120, Thruxton R, Thruxton S & Street Scrambler. Euro 4 Speed Twin (2019-2020)
The adaptor comes both colour and letter coded with each function banded together and labelled for easy use.
NOTE : MOTONE LOOM INCLUDES DIODE INLINE TO PREVENT ECU WARNING LIGHT ERROR ON NON-TRIUMPH LIGHTS
It also utilises all 6 of the stock loom plugs giving you an extra live connector to run any auxiliary devices.

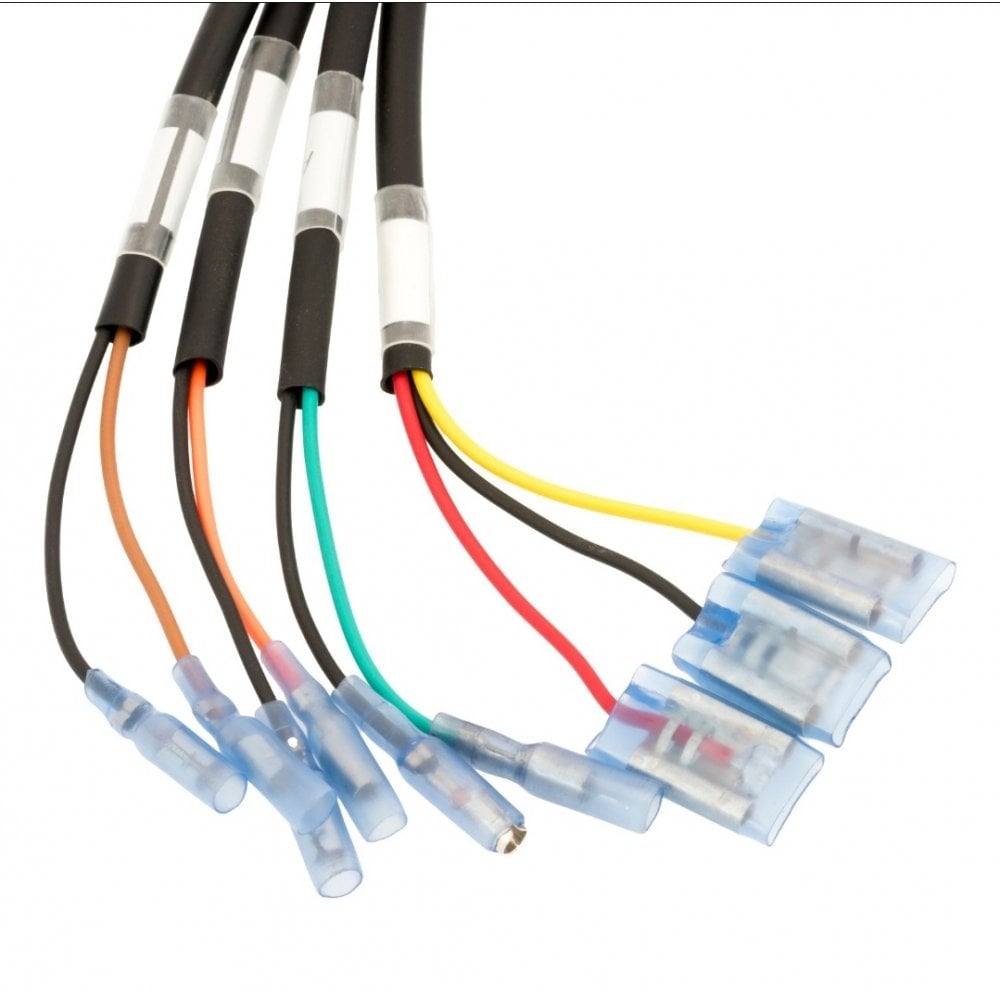

T : Tail light - (CAN CONNECT TAIL LIGHT and 2 MULTI FUNCTION 3in1s at the same time)
RED - BRAKE Light [TRIPLE SPADE CONNECTORS]
YELLOW - RUNNING Light [TRIPLE SPADE CONNECTORS]
BLACK - Earth [TRIPLE SPADE CONNECTORS]
L : Left Indicator/Turn Signal
BROWN - LHS Signal
BLACK - Earth
R : Right Indicator/Turn Signal
ORANGE - RHS Signal
BLACK - Earth
A : Auxiliary Live
GREEN - AUX
BLACK - Earth

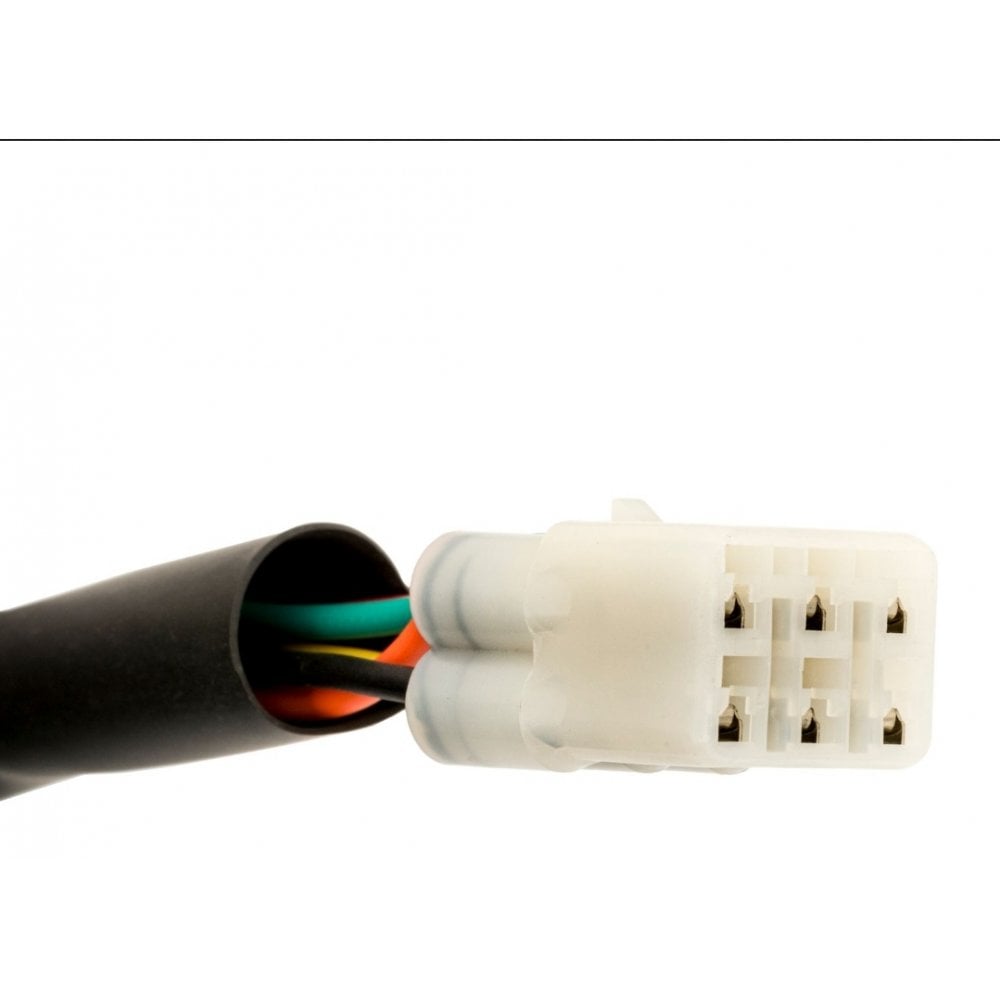

Note : 6-Way loom connector hermetically sealed to prevent water ingress
